CHANCERY

CHANCERY

  • Direct Drive® Technology
  • Pre-set dimming or DALI control
  • Integrated photocell
  • Excellent thermal management
  • Fully sealed PC glazing
  • Market-leading reliability

Description

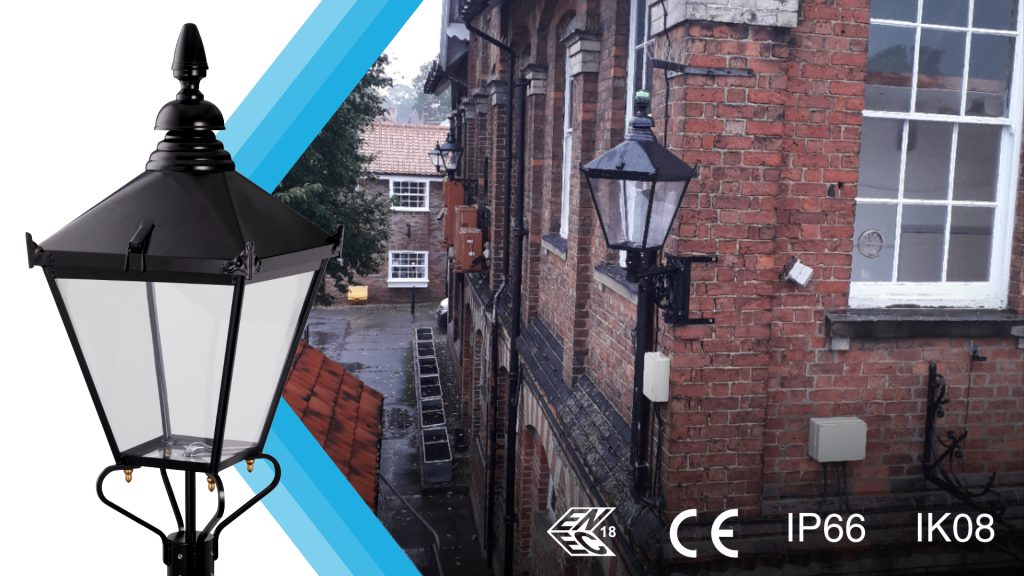

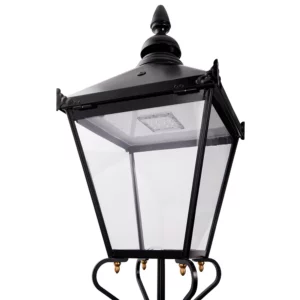

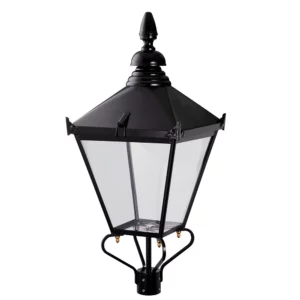

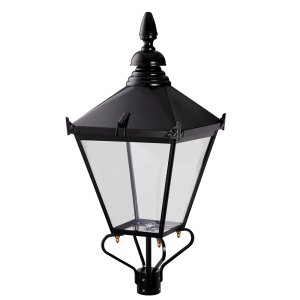

INDO’s decorative LED lantern, the CHANCERY, is a Direct Drive® LED luminaire that gives clients outstanding lighting and energy performance without compromising aesthetics.

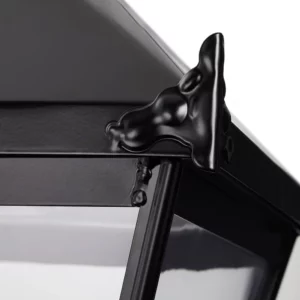

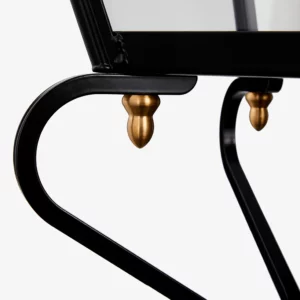

Available with or without the frog embellishment, the clean, traditional styling and quality features of CHANCERY make it the perfect LED replacement for a wide range of heritage schemes. And with a choice of ambience-setting colour temperatures available (from as warm as 2200K) and a diverse range of high-performance optics, customers can replace old fixtures with total confidence.  Customers who wish to minimise any ‘chandelier effect’ or just prefer a more diffused light, can now choose a frosted bowl finish.

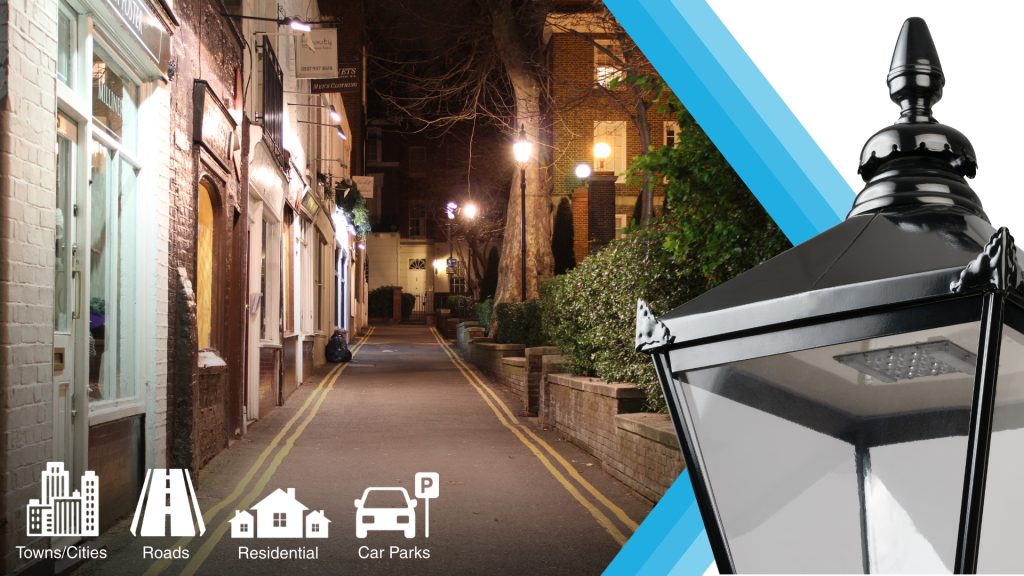

All the boxes are ticked with this robust yet attractive Victorian styled luminaire, ideal for a wide range of classic exterior lighting applications. But you get so much more with INDO’s award-winning LED technology, Direct Drive® that means increased lifetime and reliability with no drivers to replace or maintain as well as the unique INDO integrated photocell.

Take thousands off your ongoing electricity and maintenance bills whilst improving risk mitigation with INDO.

View Datasheet

Download Photometry – 3000K

Download Photometry – 4000K

Find UMSUG Code

Additional information

Lumen output

0500, 1,000, 1,500, 10,000, 2,000, 2,500, 20,000, 3,000, 3,500, 4,000, 4,500, 5,000, 6,000, 7,000, 8,000, 9,000

Correlated Colour Temperature (CCT)

2,200K, 2,700K, 3,000K, 4,000K, 5,000K

Integrated Photocell

20/20 lux, 35/18 lux, 55/28 lux, Not activated, Not fitted

Dimming

Dimmed to 50% [00:00 – 05:00], Dimmed to 75% [00:00 – 05:00], Dimmed to program, No pre-set dimming

Lens Type

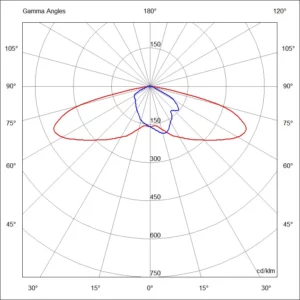

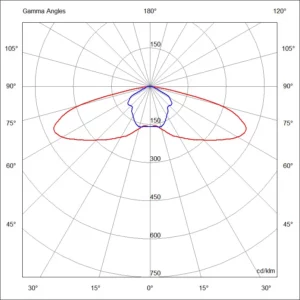

DR1 to DR5, M00 to M10, P00 to P05, SW, Twin-opposed Super Wide

Luminaire Colour

Jet Black

Direct Drive&reg

Yes

Operating Temperature Range

-40 degrees C (min) to +40 degrees C (max)

Colour Rendering Index (CRI)

> 70

CMS Compatible

Yes

Rated Lamp Life (Hours)

Up to 250,000

Constant Light Output

Yes

Power Factor

>0.95

Reliability (failures per million hours)

0.58

S/P Ratio (@4000K)

Opus Module 1.4, Chroma Module 1.6

Surge Protection

7kV DM, 4kV CM, 20kV DM, 20kV CM

Voltage (V)

195 – 265V

Weight

Min 7.5kg Max 9.0kg
