BLADE Core
- Zhaga D4i Compatible
- Sensor Ready
- Tool-less maintenance option
- Dimmable
- High output up to 8 klm
- Lightweight fitting (4.5kg)
- Wide range of PT/SE mounting options
- Class-leading thermal management
- Lamp efficacy up to 200 lm/W
- LED efficacy
- 200 lm/W
- Lumen output
- 500 - 8,000 lm
- Lumen maintenance (L70)
- 500,000 hours
Downloads

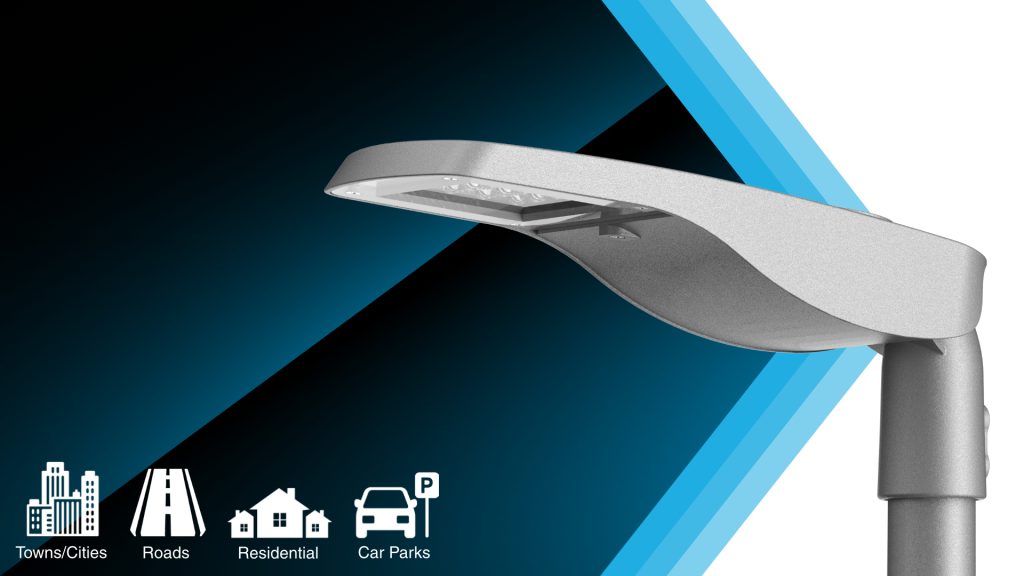

The BLADE Core is our street light for towns and cities that want control as well as light. Zhaga sensor interfaces and DALI D4i compatibility mean lighting levels can be set, monitored and adjusted after installation, rather than fixed on the day it is fitted, so a scheme keeps pace with how a street is actually used.
BLADE Core features INDO’s new OptiFlex™ Technology
BLADE Core uses innovative OptiFlex™ Technology to provide customers the ultimate choice when it comes to lighting layouts. Whether trying to illuminate narrow roads or wide parks, OptiFlex™ finds the best possible light throw. This results in the lowest possible wattage and maximum energy savings.
Technical specification
- Power factor
- >0.9
- Power
- 3W - 60W
- Electrical class
- Class I (NEMA and Zhaga)
Class II Option (Zhaga only) - Voltage (V)
- 176 to 305V
- Lumen output
- 500 - 8,000
- Colour rendering index (CRI)
- > 70
- Constant light output
- Yes
- Correlated colour temperature (CCT)
- 2,200K to 6,500K
- LED efficacy
- 200 lm/W
- Lens type
- INDO OptiFlex™ Technology
- Dimensions
- 570mm (L) x 180mm (W) x 100mm (D)

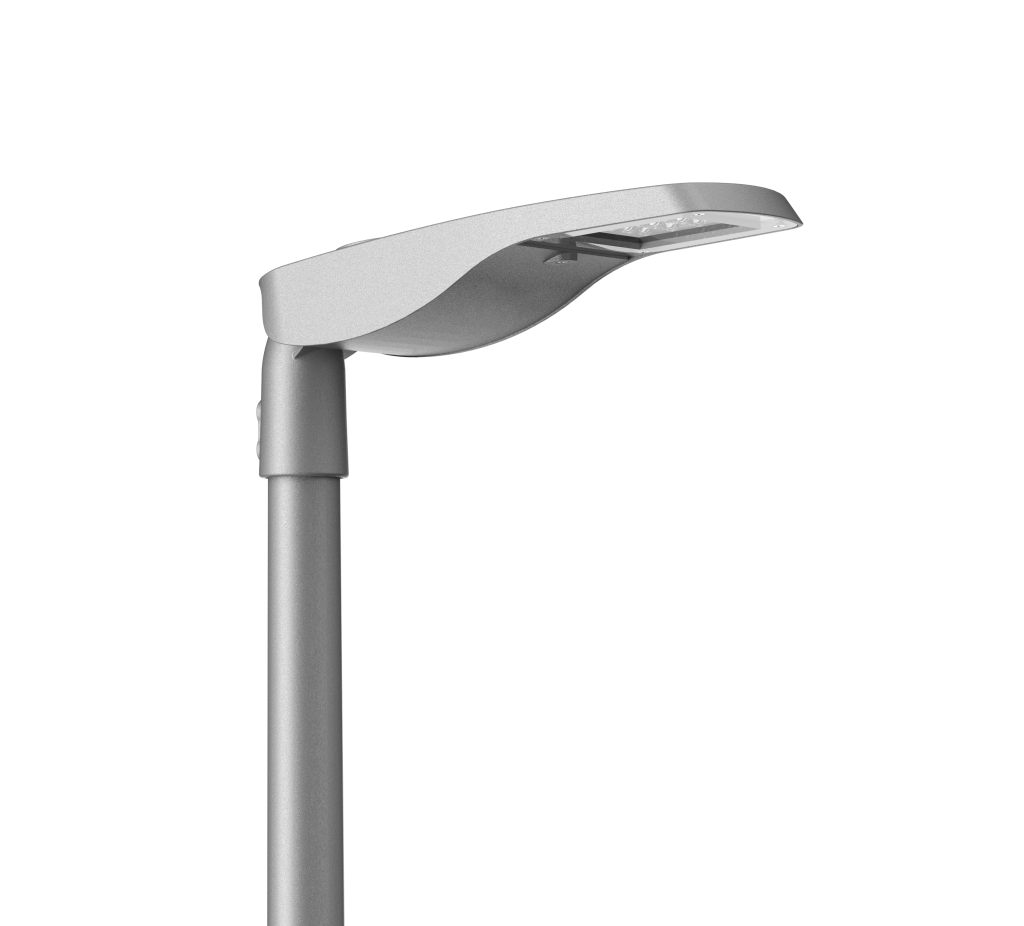

- Mounting
- SE 34-60mm (-15° to +15°)
PT 60-76mm (-15° to +15°) - Maintenance
- Tool-less Access Option
- Weight
- 4.5kg
- Shields available?
- Yes
- Luminaire colour
- RAL7040 (GREY)
RAL9005 (BLACK)
- CMS compatible
- Yes
- Control
- Zhaga SR or NEMA
- Dimming
- DALI, Dimmed to 50% [00:00 to 05:00], Dimmed to 75% [00:00 to 05:00], Dimmed to program, No pre-set dimming
- Direct Drive
- No
- Zhaga protocol
- D4i
- IP rating
- IP66
- Lumen maintenance (L70)
- 500,000 hours
- Operating temperature range
- -40°C to +40°C
