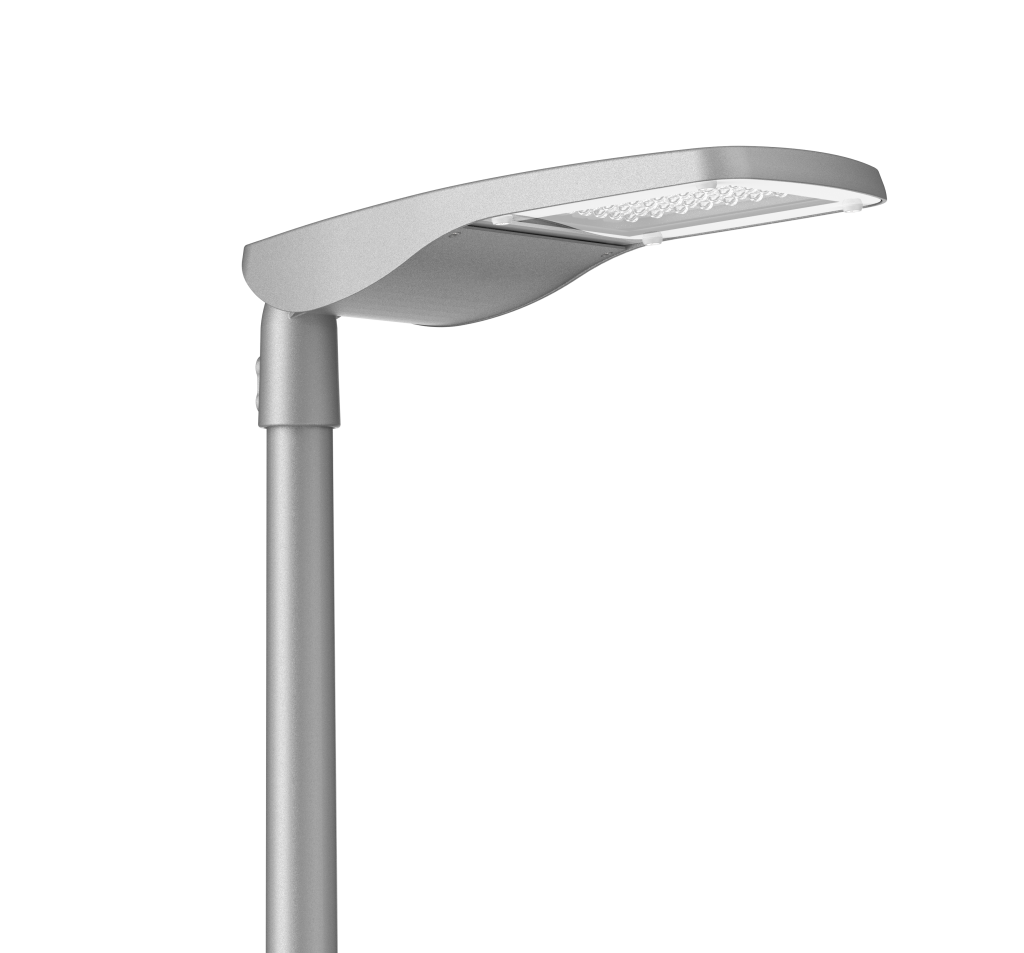

BLADE Max
- Zhaga D4i Compatible
- Sensor Ready
- Tool-less maintenance option
- Dimmable
- High output up to 20 klm
- Lightweight fitting (6.5kg)
- Wide range of PT/SE mounting options
- Class-leading thermal management
- Lamp efficacy up to 200 lm/W
- LED efficacy
- 200 lm/W
- Lumen output
- 500 - 20,000 lm
- Lumen maintenance (L70)
- 500,000 hours
Downloads

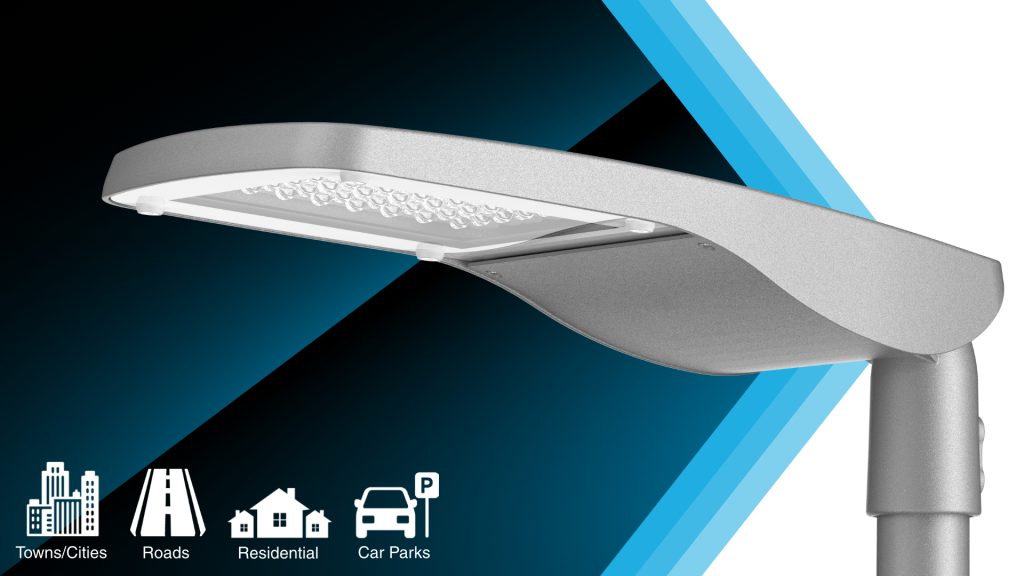

Introducing the BLADE Max, the latest addition to INDO’s Functional range. BLADE Max boasts an incredible range of optics, due to its innovative OptiFlex™ Technology, allowing clients to optimise photometries based on specific road geometries. This advanced, new technology allows for the maximum possible energy savings. The BLADE Max builds upon the BLADE Core, with its larger form factor, greater efficiency and higher available lumen output. As a next-generation street luminaire featuring Zhaga and DALI-D4i compatibility, BLADE Max offers a host of benefits that contribute to the advancement of modern urban lighting infrastructure.
BLADE Max features INDO’s new OptiFlex™ Technology
BLADE Max uses innovative OptiFlex™ Technology to provide customers the ultimate choice when it comes to lighting layouts. Whether trying to illuminate narrow roads or wide parks, OptiFlex™ finds the best possible light throw. This results in the lowest possible wattage and maximum energy savings.
Technical specification
- Power factor
- >0.9
- Power
- 3W - 120W
- Electrical class
- Class I (NEMA and Zhaga)
Class II Option (Zhaga only) - Voltage (V)
- 176 to 305V
- Lumen output
- 500 - 20,000
- Colour rendering index (CRI)
- > 70
- Constant light output
- Yes
- Correlated colour temperature (CCT)
- 2,200K to 6,500K
- LED efficacy
- 200 lm/W
- Lens type
- INDO OptiFlex™ Technology
- Dimensions
- 675mm (L) x 292mm (W) x 101mm (D)
- Mounting
- SE 34-60mm (-15° to +15°)
PT 60-76mm (-15° to +15°) - Maintenance
- Tool-less Access Option
- Weight
- 6.5kg
- Shields available?
- Yes
- Luminaire colour
- RAL7040 (GREY)
RAL9005 (BLACK)
- CMS compatible
- Yes
- Control
- Zhaga SR or NEMA
- Dimming
- DALI, Dimmed to 50% [00:00 to 05:00], Dimmed to 75% [00:00 to 05:00], Dimmed to program, No pre-set dimming
- Direct Drive
- No
- Zhaga protocol
- D4i

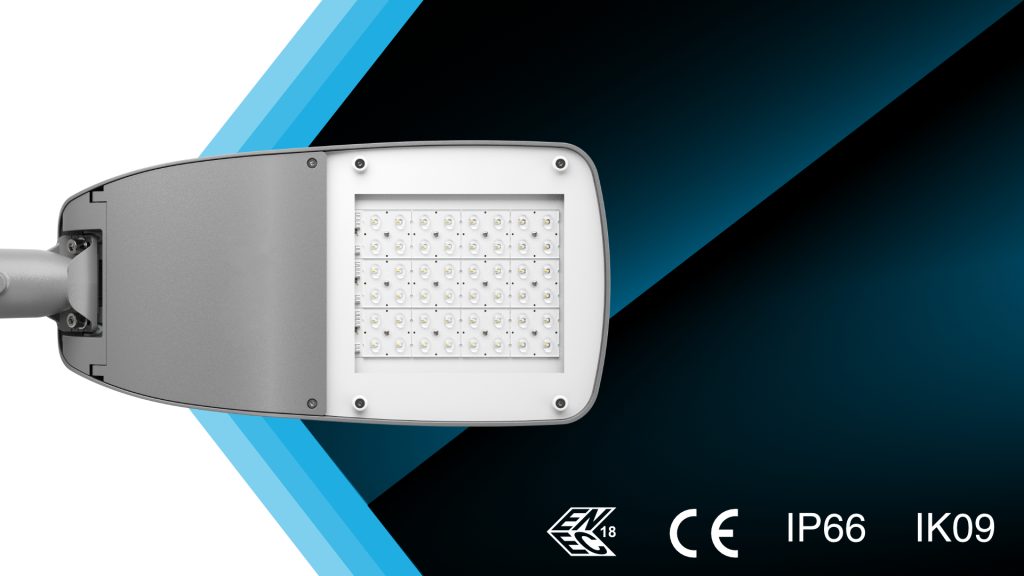

- IP rating
- IP66
- Lumen maintenance (L70)
- 500,000 hours
- Operating temperature range
- -40°C to +40°C
