CHANCERY

  • Direct Drive® Technology
  • Pre-set dimming or DALI control
  • Integrated photocell
  • Excellent thermal management
  • Fully sealed PC glazing
  • Market-leading reliability

Description

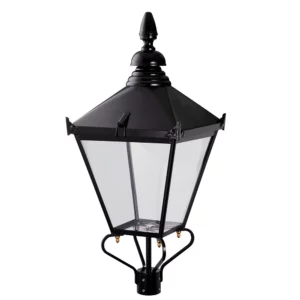

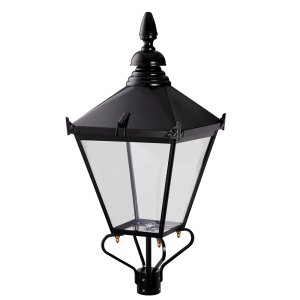

INDO’s decorative LED lantern, the CHANCERY, is a Direct Drive® LED luminaire that gives clients outstanding lighting and energy performance without compromising aesthetics.

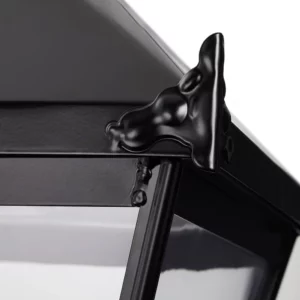

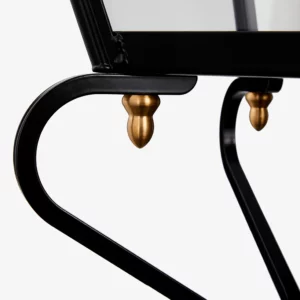

Available with or without the frog embellishment, the clean, traditional styling and quality features of CHANCERY make it the perfect LED replacement for a wide range of heritage schemes. And with a choice of ambience-setting colour temperatures available (from as warm as 2200K) and a diverse range of high-performance optics, customers can replace old fixtures with total confidence.  Customers who wish to minimise any ‘chandelier effect’ or just prefer a more diffused light, can now choose a frosted bowl finish.

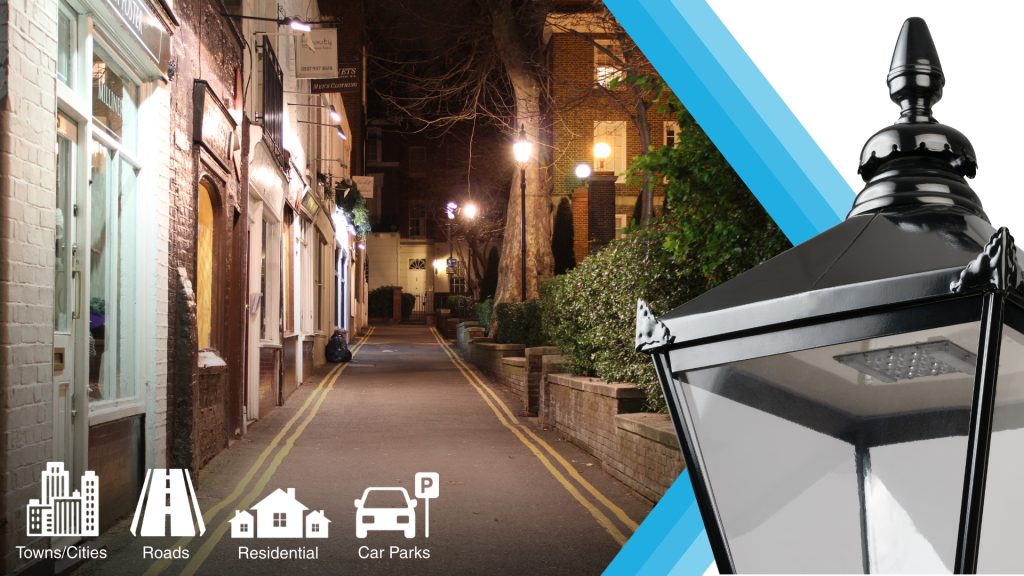

All the boxes are ticked with this robust yet attractive Victorian styled luminaire, ideal for a wide range of classic exterior lighting applications. But you get so much more with INDO’s award-winning LED technology, Direct Drive® that means increased lifetime and reliability with no drivers to replace or maintain as well as the unique INDO integrated photocell.

Take thousands off your ongoing electricity and maintenance bills whilst improving risk mitigation with INDO.

Additional information

Electrical
Power factor>0.95
Surge protection7kV differential mode, 4kV common mode, 20kV differential mode, 20kV common mode
Voltage (V)195 – 265V
Pre-wiredYes
Photometric
Lumen output500 - 9,000
Correlated colour temperature (CCT)2,200K, 2,700K, 3,000K, 4,000K, 5,000K

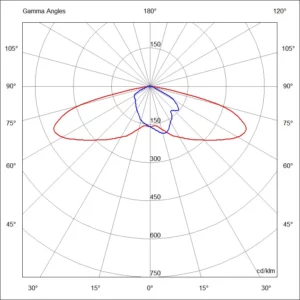

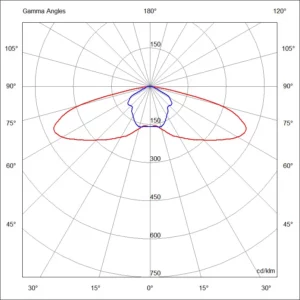

Lens typeDR1 to DR5, M00 to M10, P00 to P05, SW, Twin-opposed Super Wide
Colour rendering index (CRI)> 70
Constant light outputYes
S/P ratio (@4000K)Opus Module 1.4, Chroma Module 1.6
Physical
Luminaire colourJet Black
WeightMin 7.5kg Max 9.0kg
Controls
Integrated photocell20/20 lux, 35/18 lux, 55/28 lux, Not activated, Not fitted
DimmingDimmed to 50% [00:00 – 05:00], Dimmed to 75% [00:00 – 05:00], Dimmed to program, No pre-set dimming
Direct DriveYes
CMS compatibleYes
Ratings
Operating temperature range-40 degrees C (min) to +40 degrees C (max)
Rated lamp life (hours)Up to 250,000
Reliability (failures per million hours)0.58

Data sheet

Full technical specification, dimensions and product variants.

Download CHANCERY data sheetPDF · 1.9 MB (opens in a new tab)

Photometry

IES and LDT photometric data for use in lighting design software (Dialux, Relux, AGi32).
