LPSX
- Ideal stop-gap solution
- Up to 77% annual savings
- Quick and easy to install
- HPDC Aluminium heatsink
- Fully sealed, protective PC cover
- Quick payback
Description

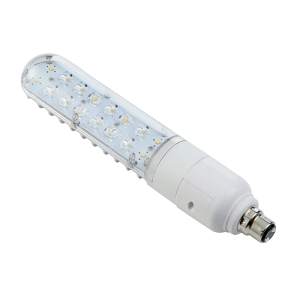

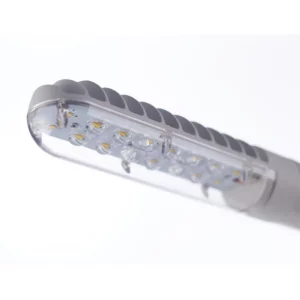

LPSX is a standard routine maintenenace lamp, supplied by INDO as a direct LED retrofit for low pressure sodium lamps. This is the perfect low-cost solution for customers looking for a stop-gap to take advantage of upgrading to LED without the need for full asset replacement.
INDO uses industry-leading components and a carefully arranged LED array to create a more directional footprint ideally suited for street lighting. Whilst not Direct Drive®, the key components (including driver) have been selected to optimise lifetime.
If you have a SOX lantern run on magnetic gear, LPSX is a handy, direct plug and play replacement with no re-wiring or additional components to install and great energy savings. LPSX is offered with a 2-year warranty and rated lifetime of 88,000 hours, making this a sturdy, cost-effective option for use in your re-lamping schedules
Additional information
| CMS Compatible | No |
|---|---|
| Colour Rendering Index (CRI) | > 70 |
| Correlated Colour Temperature (CCT) | 4,000K |
| Connector | Standard lamp holder |
| Control | None |
| Dimensions | 310mm x 54mm |
| Dimming | No dimming |
| Direct Drive | No |
| Frequency (Hz) | 50Hz |
| Integrated Photocell | Not fitted |
| Lamp Holder | B22 |
| Lamp/Power | 17W |
| LED Efficacy | 131 lm/W |
| Lens Type | Clear Polycarbonate |
| Lumen Maintenance (L80B50) | 88,000 hrs |
| Lumen output | 1,974 |
| Operating Temperature Range | -30 degrees C (min) to +40 degrees C (max) |
| Optical Risk Group | RG1 |
| Power Factor | >0.90 |
| S/P Ratio (@4000K) | 1.5 |
| Surge Protection | 6kV (max) |
| UMSUG Charge Code(s) | 42 0017 0000 100 |
| Voltage (V) | 110 – 230 |
| Weight | 0.5kg |
