MANOR
- Direct Drive® Technology
- Pre-set dimming or DALI control
- Integrated photocell
- Excellent thermal management
- Fully sealed PC glazing
- Market-leading reliability
- Lumen output
- 500 - 16,000 lm
Downloads
Similar to INDO’s CHANCERY, the MANOR combines classic aesthetics with innovative Direct Drive® technology making it the perfect LED replacement for a wide spectrum of heritage
lighting schemes. With colour temperature options that can create a warm and inviting atmosphere and both suspended spigot and post top mounting options, the MANOR offers end users a reliable solution for upgrading old HPS fixtures. The MANOR is designed with durability in mind, ensuring IP66 and IK08 thanks to its stainless steel fixings, its fully aluminium body, and its UV stabilised polycarbonate bowl.

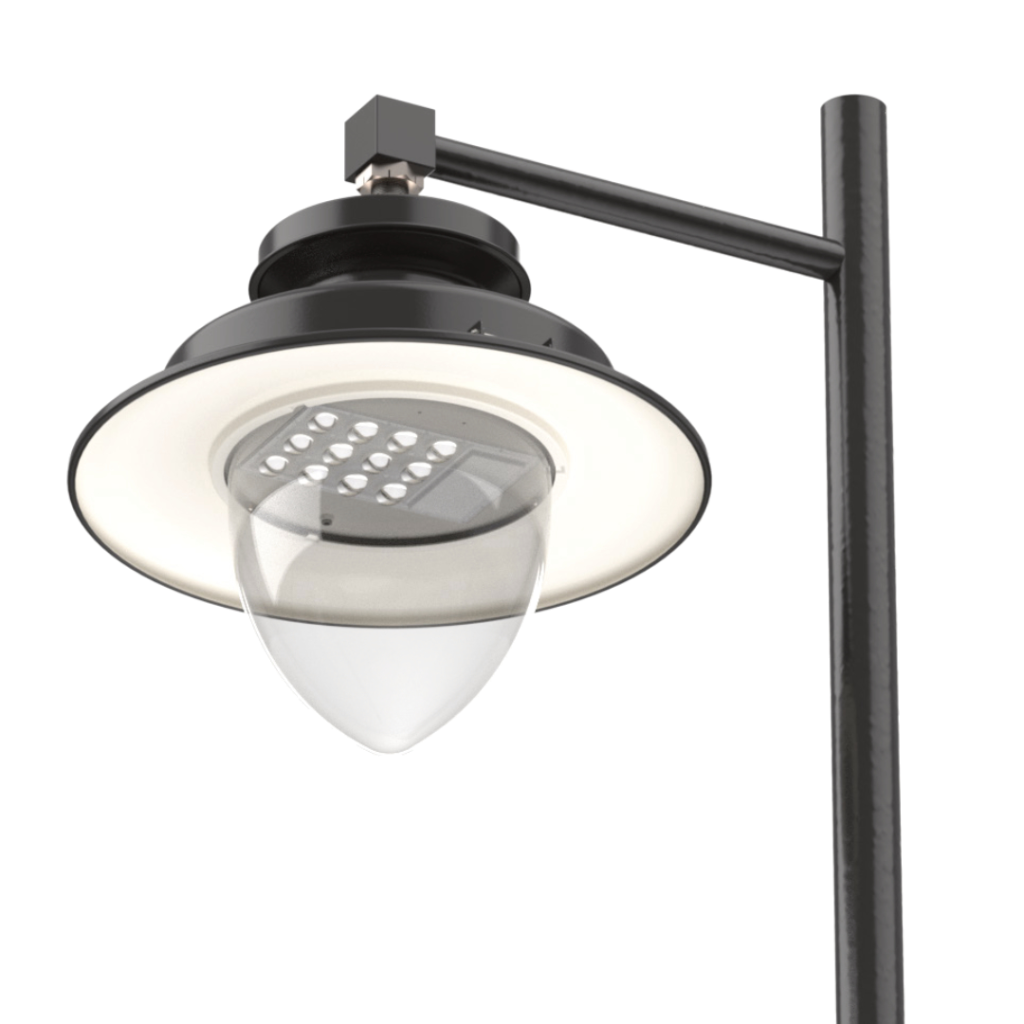

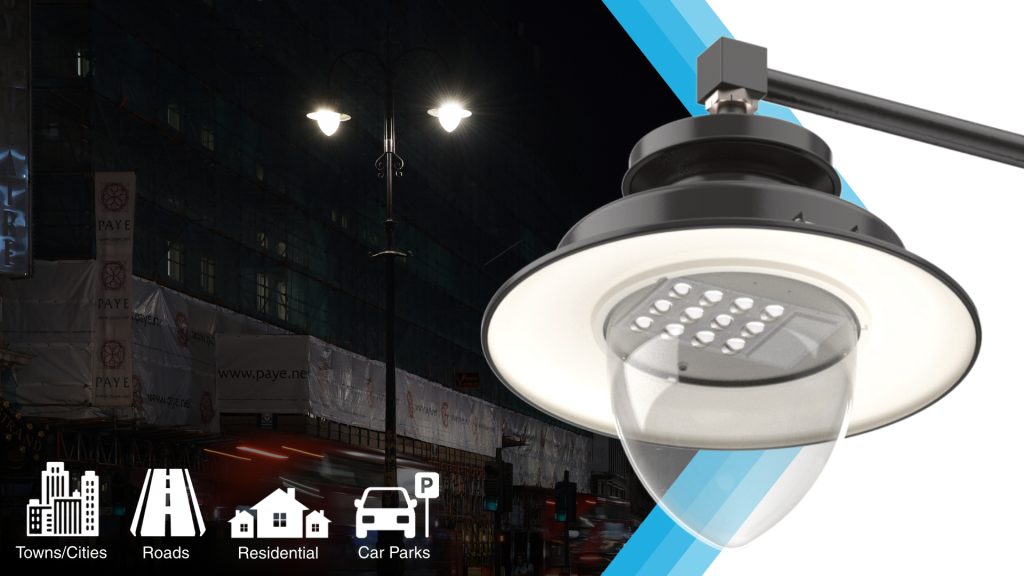

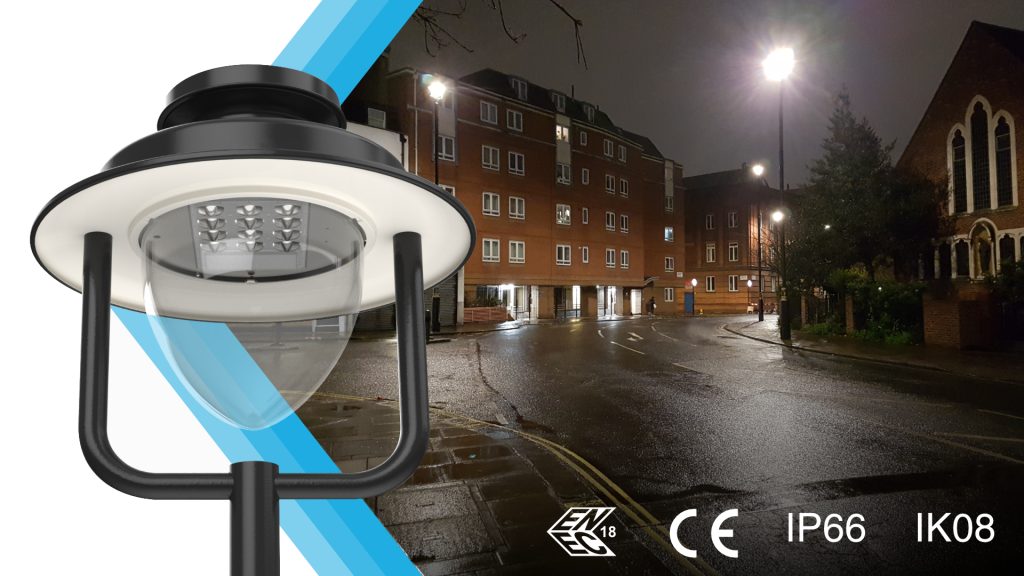

INDO’s MANOR can either be suspended via a BSP.P spigot or mounted on a post top stirrup bracket. Two bowl models are available: tear drop bowl or round bowl.
Designed and manufactured in the UK, INDO’s MANOR ensures timeless elegance combined with exceptional long-term performance and reliability, achieved through the use of high-quality components. Powered by INDO’s pioneering Direct Drive® technology, the MANOR offers an innovative solution that consistently sustains optimal performance throughout its lifespan.
Technical specification
- Power factor
- >0.95
- Surge protection
- 7kV differential mode, 4kV common mode, 20kV differential mode, 20kV common mode
- Voltage (V)
- 195 to 265V
- Pre-wired
- Yes
- Lumen output
- 500 - 16,000
- Correlated colour temperature (CCT)
- 2,200K, 2,700K, 3,000K, 4,000K
- Lens type
- DR1 to DR5, M00 to M10, P00 to P05, SW, Twin-opposed Super Wide
- Colour rendering index (CRI)
- > 70
- Constant light output
- Yes
- S/P ratio (@4000K)
- Opus Module 1.4, Chroma Module 1.6
- Luminaire colour
- Jet Black
- Weight
- Min 8.9kg Max 10.4kg
- Integrated photocell
- 20/20 lux, 35/18 lux, 55/28 lux, Not activated, Not fitted
- Dimming
- Dimmed to 50% [00:00 to 05:00], Dimmed to 75% [00:00 to 05:00], Dimmed to program, No pre-set dimming
- Direct Drive
- Yes
- CMS compatible
- Yes
- Operating temperature range
- -40 degrees C (min) to +40 degrees C (max)
- Rated lamp life (hours)
- Up to 250,000
- Reliability (failures per million hours)
- 0.58
