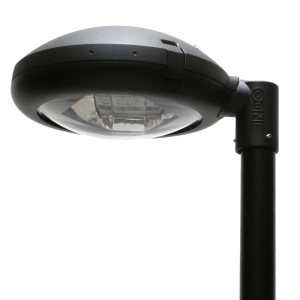

RD12

  • Direct Drive®
  • Decorative LED road light
  • Dimmable
  • CMS compatible
  • Constant Light Output
  • High purity mirrored aluminium reflector
  • RGB option available

Description

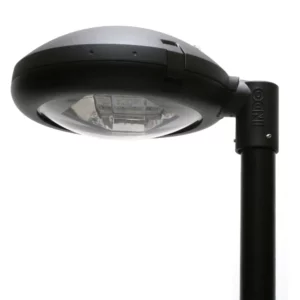

The INDO RD12 is a low profile, contemporary LED lantern that’s designed to perform.  By combining the highest level of lumen efficiency with an attractive luminaire design, the RD12 is an excellent choice for areas where both aesthetics and performance are important.

This luminaire benefits from being a Direct Drive® LED solution combined with circuitry offering full CMS compatibility and the ability for constant light output (CLO) and other control options such as pre-set dimming.

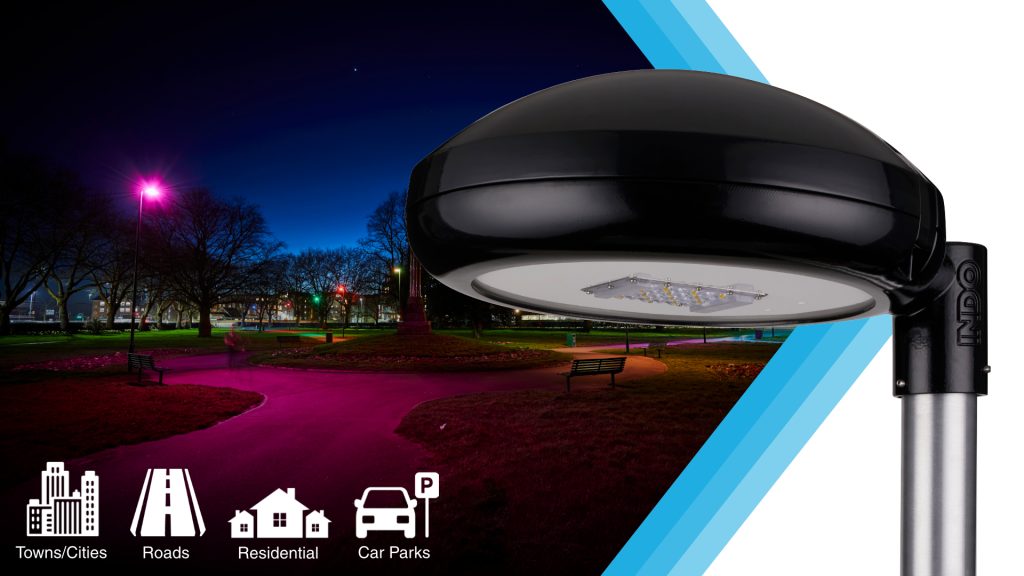

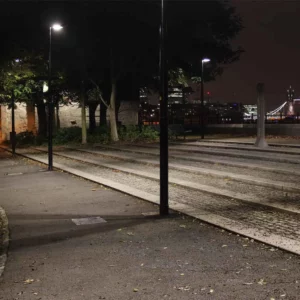

For architects and lighting designers looking to achieve a clean, modern street scene where the light fittings are a positive feature both day and night, the Direct Drive RD12 will certainly appeal.  Superior uniformity and area illumination will deliver in terms of safety and performance too.  The optical output is very well suited for open spaces such as parks, town centres and car parks as well as many road lighting applications too.

PLUS!
INDO has an RD12 RGB option, tailored to suit your application and fully compatible with all major CMS control systems to deliver dynamic, multi-colour changing effects.

Additional information

Electrical
Surge protection7kV differential mode, 4kV common mode, 20kV differential mode, 20kV common mode
Pre-wiredYes
Photometric
Lumen output500 - 9,000
Correlated colour temperature (CCT)2,200K, 2,700K, 3,000K, 4,000K, 5,000K
Lens typeDR1 to DR5, M00 to M10, P00 to P05, SW, SWA, SWB
Colour rendering index (CRI)> 70Ra
S/P ratio (@4000K)Opus Module 1.4, Chroma Module 1.6, Navigator Module 1.5
Physical
Mounting76mm Post Top
Luminaire colourJet Black
Weight7.2kg
Controls
ControlDALI
DimmingDimmed to 50% [00:00 – 05:00], Dimmed to 75% [00:00 – 05:00], Dimmed to program, No pre-set dimming
Direct DriveYes
Ratings
IP ratingIP65
Operating temperature range-20 degrees C (min) to +40 degrees C (max)
UMSUG charge code(s)see umsug listing in resources
Lumen maintenance (L80B50)230,000 hours

Data sheet

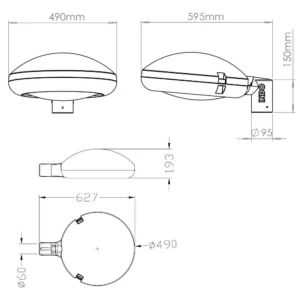

Full technical specification, dimensions and product variants.

Download RD12 data sheetPDF · 2.1 MB (opens in a new tab)

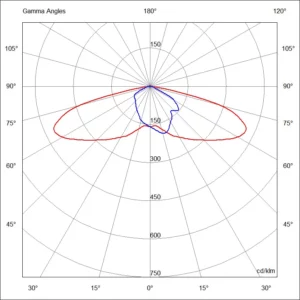

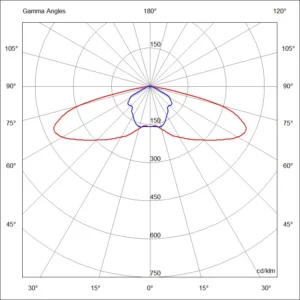

Photometry

IES and LDT photometric data for use in lighting design software (Dialux, Relux, AGi32).
