SiCURA
- No wear out components with Direct Drive® technology
- Sensor Ready, Smart City solution
- Lowest whole-life cost
- Full interoperability with DALI1 & DALI2
- Superior vandal resistance with IK10 silicone lens
- Lightweight, low windage premium fitting
- Hassle-free universal mounting
- Suitable for up to 150W replacement
Description
Get Sensor Ready and take control over luminaire lifetime, cost, DALI compatibility and supply choice!
Introducing the INDO SiCURA; a new, feature-rich, Sensor Ready residential fitting that keeps you in the driver’s seat. Intelligent software and electronics use the ZHAGA compliance system in conjunction with INDO’s Direct Drive technology – resulting in robust compatibility with DALI-1 and DALI-2 and still no driver or wear out components to worry about.
Optical and energy performance have been a driving force behind the product’s development whilst ultra-high reliability and longevity continue to provide superior customer benefit. AND you aren’t tied to a single driver supply option.
SiCURA is ENEC approved and does everything you need a luminaire to do, and MORE, giving customers much better control and choice

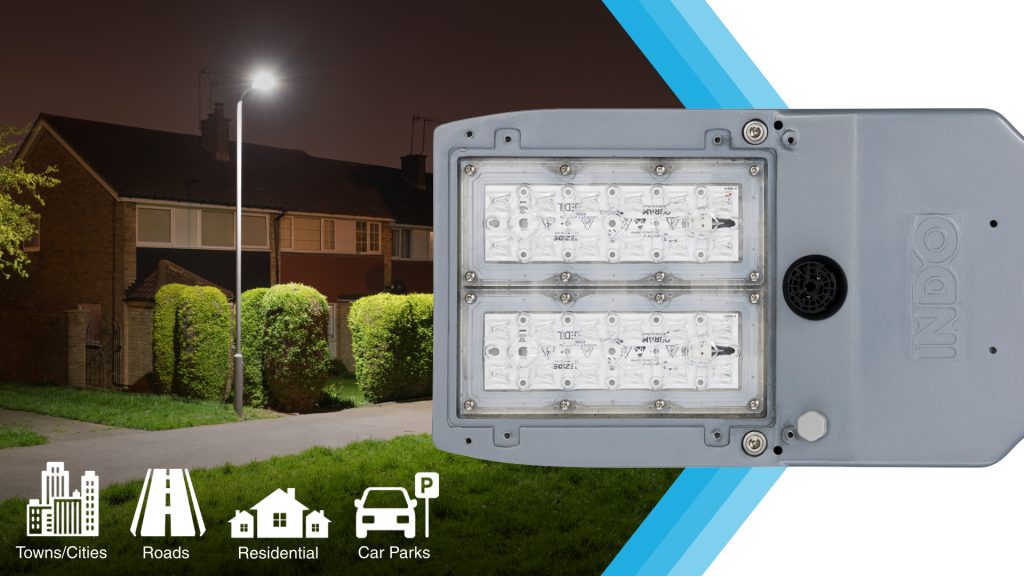

A strong, initial suite of six optical distributions is available to suit a range of road geometries, with lumen output options up to 8,000 lumens. This makes SiCURA a high-efficiency replacement suitable for all exterior lighting applications from 26W SOX up to 150W SON upgrade projects.
Being fully dimmable, SiCURA naturally meets the requirements of many low-mid power applications. Direct Drive allows the unit to be dimmed to 25% output while maintaining a high power factor up to 0.85
Additional information
| Dimensions | 475 × 206 × 109 cm |
|---|---|
| Lumen output | 0500, 1,000, 1,500, 2,000, 2,500, 3,000, 3,500, 4,000, 4,500, 5,000, 6,000, 6,500, 7,000, 7,500, 8,000 |
| Colour Rendering Index (CRI) | > 70 |
| Constant Light Output | Yes |
| CMS Compatible | Yes |
| Correlated Colour Temperature (CCT) | 2,700K, 3,000K, 4,000K |

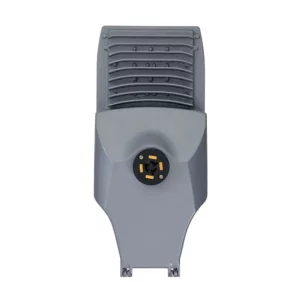

| Control | 20mm Pre-drilled, NEMA (3 pin), NEMA (5 pin), NEMA (7 pin), ZHAGA SR |
| Dimensions | 457mm (L) x 206mm (W) x 109mm (D) |
| Dimming | Dimmed to 50% [00:00 – 05:00], Dimmed to 75% [00:00 – 05:00], Dimmed to program, Fixed |
| Direct Drive | Yes |
| Drive Current | From 154mA to 749mA |
| ENEC Approved | Yes |
| Frequency (Hz) | 100Hz |
| IK Rating | IK09 (PC Lens) IK10 (Silicone Lens) |
| Integrated Photocell | Not fitted |
| IP Rating | IP66 |
| LED Efficacy | 193.4 lm/W |
| Lens Type | FOA01, FOR01, FOR02, FOR03, FOR04, FOR05, FOR06 |
| Lumen Maintenance (L80B50) | 176,000 |
| Luminaire Colour | Custom ***, Grey, Jet Black |
| Mounting | PT 60-76mm (0° to +10°), SE 34-60mm (-15° to +15°)* |
| Operating Temperature Range | -40 degrees C (min) to +40 degrees C (max) |
| Optical Risk Group | RG1 |
| Power Factor | >0.90 |
| Rated Lamp Life (Hours) | 176,000 hours |
| S/P Ratio (@4000K) | Up to 1.6 |
| Surge Protection | 20kV DM, 20kV CM |
| Voltage (V) | 220-240V @50/60Hz |
| Weight | < 4.8kg (excl sensors) |
| Windage | 0.033m2 |
To Specify:
A state of the art functional LED exterior luminaire addressing all residential lighting applications. Suitable for mounting between 34mm-60mm side entry and 60mm-76mm post top as standard without brackets or adaptors. Optional tilt to be up to 10 degrees post top and -15 to +15 degrees side entry; with a mechanism integrated within the body of the luminaire, without brackets or adaptors. To be manufactured from LM6 Marine Grade aluminium, with a hinged lid to enable easy access to the gear compartment. Luminaire is to be reliable; with every effort made to reduce component count, and should not contain wet electrolytic capacitors. Luminaire should not require ongoing scheduled maintenance visits – the entire luminaire being suitable for operation to the chosen LxxByy period without any component changes. Luminaire is fully dimmable, and able to interface via both NEMA and ZHAGA sockets; functioning fully with a range of Central Management Systems. Luminaire should include an auxilary power supply capable of delivering 6W continuously at 24V constant voltage. Luminaire should be capable of interoperability between DALI1 and DALI2, without the requirement to specify which system will be used at the point of order. Luminaire should have an included temperature sensor to provide dimming as necessary to protect against high ambient operating temperatures. A temperature dependent soft start feature should be deployed to protect against LED failures at low temperatures. Front, back and side shields should be available and suitable for mounting directly to the luminaire without additional drilling or tapping required on-site.
As per INDO SiCURA
